Wall & Pillar Mounted (Free Standing) Jib Cranes
JIB Cranes
Trinity Solutions designs and manufactures Wall Mounted and Free Standing (Pillar Mounted) Jib Cranes to consistently high specifications, in accordance with IS-807 and IS-3177 standards. These Jib Cranes are among the most versatile lifting solutions available, ideal for supporting overhead cranes on production lines. They enhance operational efficiency by keeping workstations, machining cells, and warehouses running smoothly and reliably.
We are dedicated to ongoing innovation and refinement of our products to exceed client expectations consistently.
At Trinity Solutions, our unwavering commitment to continuous innovation and product refinement is central to our mission of consistently exceeding client expectations. By actively seeking and embracing customer feedback, we gain valuable insights into areas for improvement, allowing us to tailor our products and services to better meet our clients’ needs .
JIB Cranes

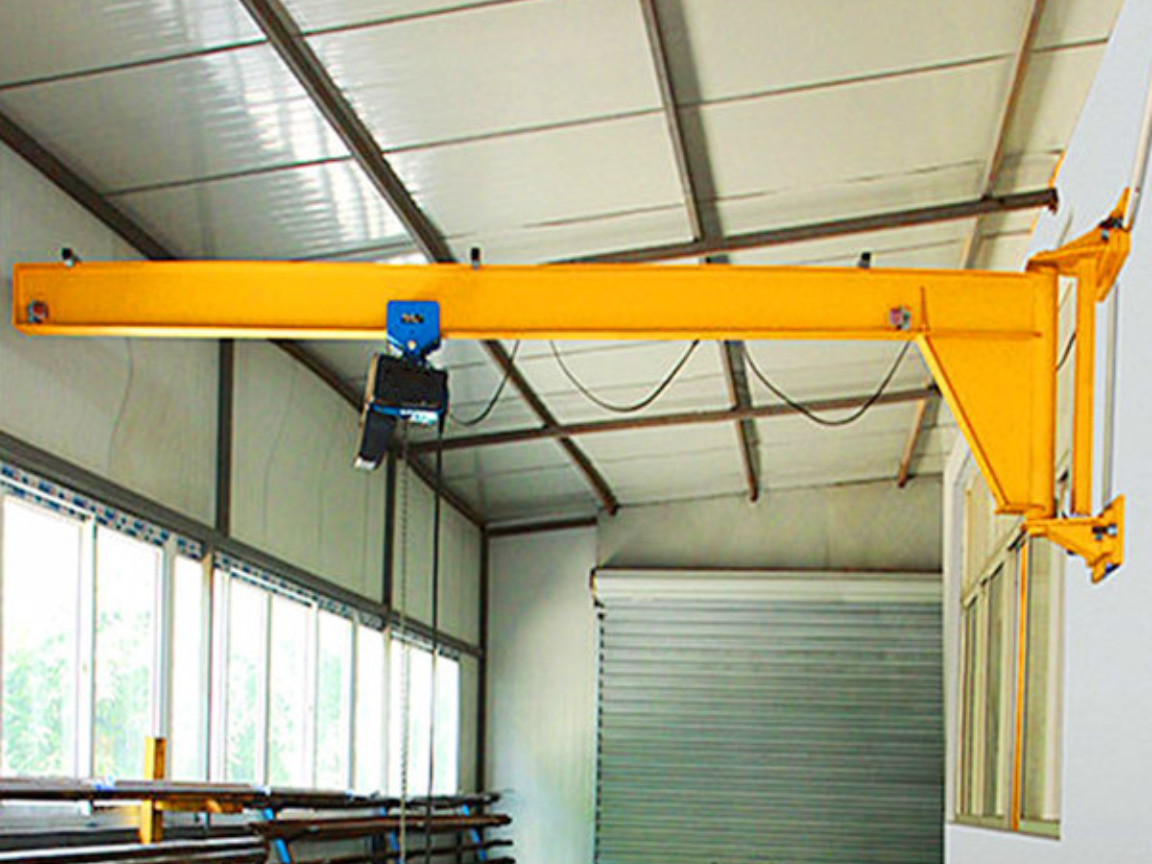

Trinity Solutions designs and manufactures Wall Mounted and Free Standing (Pillar Mounted) Jib Cranes to consistently high specifications, in accordance with IS-807 and IS-3177 standards. These Jib Cranes are among the most versatile lifting solutions available, ideal for supporting overhead cranes on production lines. They enhance operational efficiency by keeping workstations, machining cells, and warehouses running smoothly and reliably.
Features
- Plates: Constructed with M.S. Gusset Plates and thick base plates for enhanced rigidity and structural strength of the column.
- Mast: Fabricated using high-quality Pipe or Rolled Steel Sections to ensure durability and stability.
- JIB Arm: Built from heavy-section I-Beams with triangular truss construction or precision plate fabrication for maximum load-bearing capacity.
- Bearing: Equipped with double roller, self-aligned thrust roller bearings to handle vertical and horizontal loads, along with radial thrust.
- Swiveling Mechanism: Manual swiveling via chain at the end of the JIB arm or electric swiveling available upon request.
- Swiveling Boom Options: Offered with 180° or 360° rotation for versatile application and full-area coverage.
Tacklers Product Ranges
- Double Girder EOT Cranes
- Single Girder Bridge Cranes
- Gantry / Goliath Cranes
- Pulley Blocks
- Crane Accessories & Spare Parts
Pillar & Wall-mounted Jib Crane Specifications
- Capacity: 0.25 Ton to 3 Ton (250 kg to 3000 kg)
- Height of Lift: Up to 10 meters
- Boom Length: Up to 6 meters
- Rotation: Available in both Manual and Motorized options
- Degree of Rotation: 90°, 180°, and 360°
- Class of Duty: Class II, III, and IV (as per application)
- Hoist Speeds: Customized as per customer requirements
