ride-on vibratory roller
Durable and Efficient Ride-On Vibratory Roller Designed for Superior Soil Compaction in Road and Construction Projects.

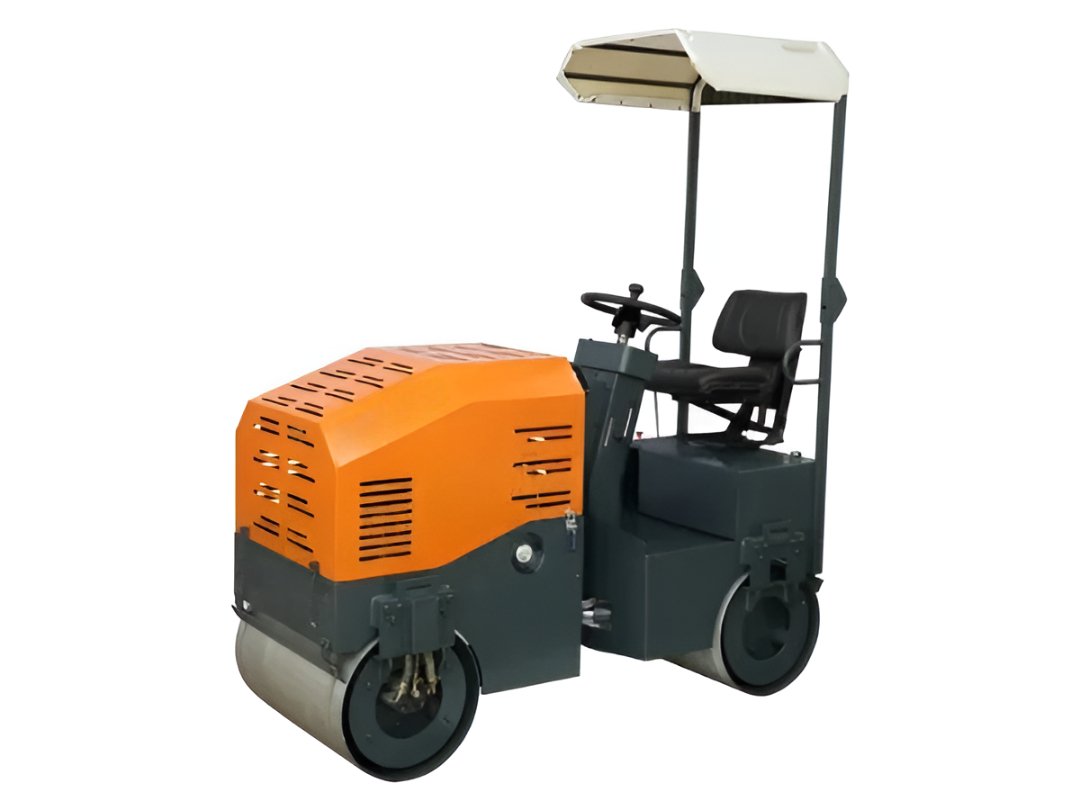

The DIR-6500 is a compact mini vibrating roller, specially designed for efficient soil and asphalt compaction. This fully hydraulic machine offers excellent maneuverability with a minimal overhang, allowing it to operate close to obstacles such as walls and edges with ease.
Equipped with a water sprinkling system, ergonomic operating handle, and precise hydraulic levers, the DIR-6500 ensures smooth and effective operation. It comes with a standard electric starter for easy ignition and enhanced user convenience.
The roller features a dual-drum design, where the front drum provides both vibration and traction, while the rear drum is dedicated to traction only, ensuring optimal compaction performance on various surfaces.
Ideal for repair work, small construction sites, and tight spaces, the DIR-6500 delivers powerful compaction in a compact and user-friendly package.
We are dedicated to ongoing innovation and refinement of our products to exceed client expectations consistently.
At Trinity Solutions, our unwavering commitment to continuous innovation and product refinement is central to our mission of consistently exceeding client expectations. By actively seeking and embracing customer feedback, we gain valuable insights into areas for improvement, allowing us to tailor our products and services to better meet our clients’ needs .
Key Features & Benefits :
- Compacts space where no other compactor can reach
- Easy Quick Compaction
- 3 Different models from 5 to 65 tons are available
- Oil Bath Type compaction weight chamber is filled with gear oil. Periodic greasing and oil changing interval is 365 days.
- Single hose block: All hoses are routed within the frame and connected to a mono hose block. Preventing the hoses from damage.
- Self-aligning bearing, provides a long service life to rotating components.
Application :
- Construction and repairing of roads
- Pavements
- Compaction canals
- Road Widening Works
- Gardening
- Embankments
- Private roads
- Hilly terrains with sharp bends
- Culverts
- Edges of highways
- Parking lots
- Internal Roads in Housing on Soil
- Playgrounds
- Granular and Asphalt etc
Technical Specifications :
| DESCRIPTION | DETAILS |
|---|---|
| GENERAL | |
| Tandem Vibratory Roller | - |
| Model | DIR-6500 |
| Hydraulic Pump (Variable Displacement) | PWG (Italy)/Equivalent |
| Hydraulic Motor | Bondioli Pavesi |
| Filter | PWG (Italy)/Equivalent |
| VIBRATION | |
| Vibration Type | Hydraulic |
| Compaction Force (kN) | 25 |
| Vibration Frequency (Hz) | 70 |
| Vibration Mode | Front Drum |
| Nominal Amplitude (mm) | 0.6 |
| TRAVELLING | |
| Traction Mode | Hydraulic-Both Drum |
| Travel Speed (kmph) | 0 to 5 (Variable Speed) |
| Gradeability | 30% |
| Turning Radius (mm) | 2400 |
| Operating Panel | MIMIC |
| Operator Seat | Adjustable |
| WEIGHT | |
| Static Weight (kg) | 700 |
| Working Weight (kg) | 800 |
| ENGINE | |
| Make | Greaves/Equivalent |
| Stroke | 4-Stroke, Air Cooled |
| Rated Speed (RPM) | 3000 |
| Engine H.P | 10 |
| Starting Type | Electric |
| Battery (Volt) | 12 |

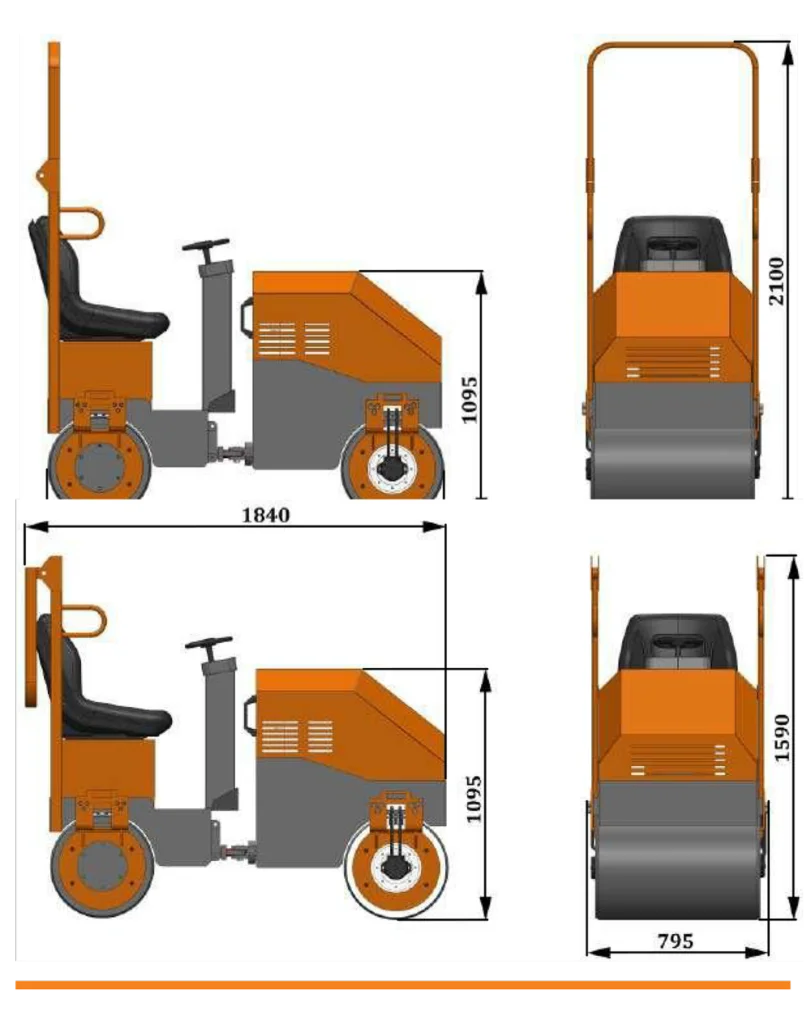

| DIMENSIONS | |
| Wheel Base (mm) | 1290 (c/c) |
| Drum Width (mm) | 700 |
| Drum Dia. (mm) | 450 |
| CAPACITY | |
| Oil Tank (Litre) | 17 |
| Fuel Tank (Litre) | 6 |
| Water Tank (Litre) | 20 |
| ACCESSORIES | |
| Front & Rear Light | Feature |
| Water Sprinkler | By Gravity (Both Drum) |
| Drum Scraper | 2 Scrapers per Drum |
| FEATURES | |
| Driver Seat | With Canopy Cover |
| Articulated Oscillating Joint | Feature |
