Mobile Concrete Placer
High-Performance Self-Propelled Mobile Concrete Placer for Efficient and Precise Concrete Placement at Construction Sites.

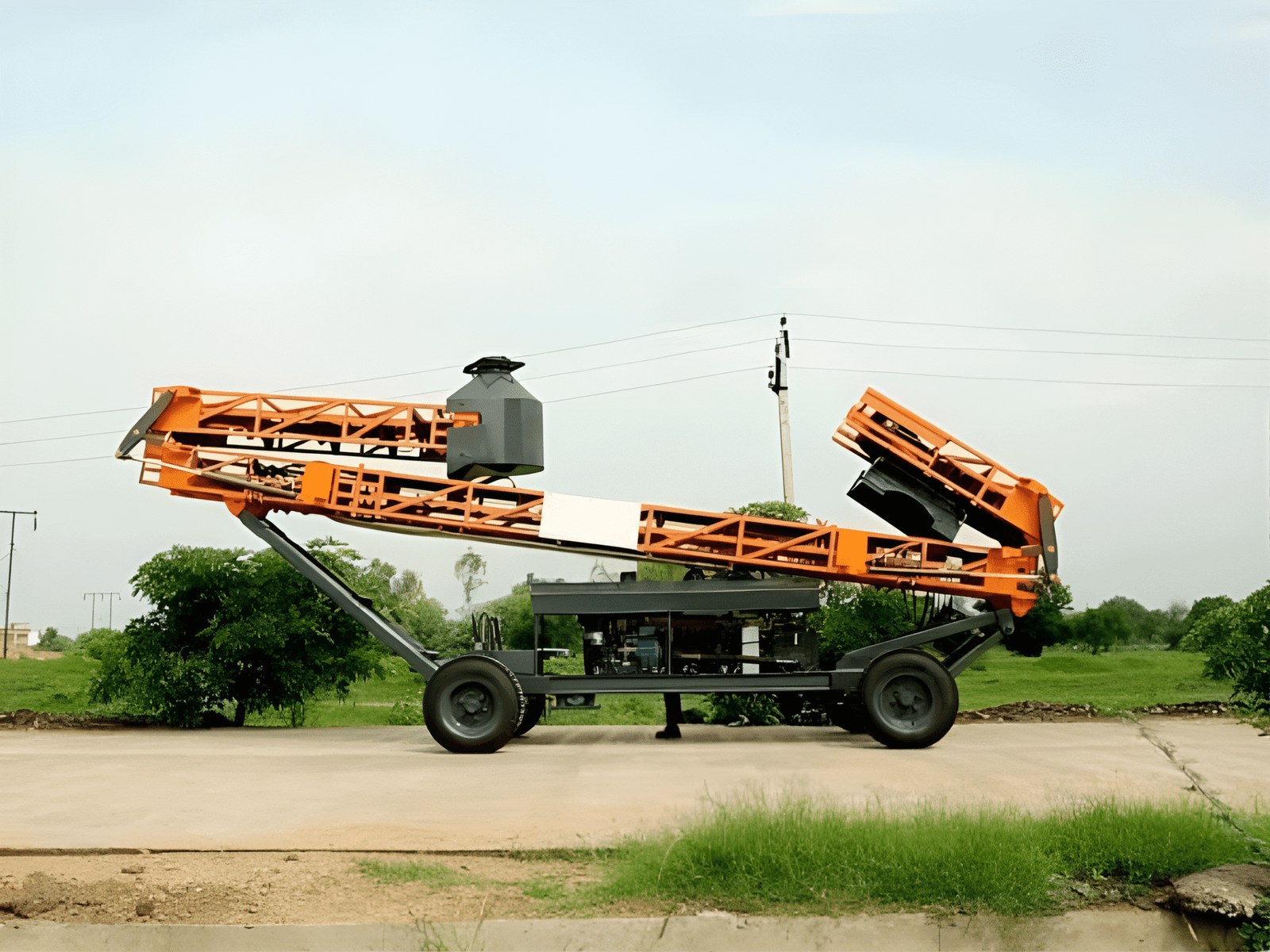

This self-propelled Mobile Concrete Placer offers an economical and highly convenient solution for discharging concrete up to the desired height directly from ground level. Designed for versatility, it features a hydraulically operated movable boom that allows precise concrete placement at any required position.
The boom movement is powered by robust hydraulic telescopic frames equipped with high-performance hydraulic cylinders, ensuring smooth and reliable operation. The primary power source of the machine can be either a diesel engine or an electric motor, depending on site requirements.
The rubber conveyor belt is driven by a high-speed, high-torque hydraulic motor through a chain drive mechanism. The conveyor structure is built from durable square tubes, angles, and plates, ensuring strength and longevity. To ensure optimal performance and reliability, the machine uses standard bearings and proven international-grade hydraulic components.
This machine is versatile, fully self-propelled, and hydraulically operated, making it ideal for a wide range of concrete placement applications on modern construction sites.
We are dedicated to ongoing innovation and refinement of our products to exceed client expectations consistently.
At Trinity Solutions, our unwavering commitment to continuous innovation and product refinement is central to our mission of consistently exceeding client expectations. By actively seeking and embracing customer feedback, we gain valuable insights into areas for improvement, allowing us to tailor our products and services to better meet our clients’ needs .
Key Features & Benefits :
- Fully Hydraulic
- Built-In Oil Cooler for Increased Lifetime of Vital Components
- Front & Rear Frame Folding System for Easy Transportation
- Better Stability in Utmost Position
- Powerful Engine for Reliable Operations
Standard Accessories :
- 1-Meter-Long Elephant Chute (5 Nos.)
- 1 Meter "C" Chute: 01 Nos
- 1.5 Meter "C" Chute: 01 Nos
- Tool Kit
Application :
- Bridge Concreting , Culverts
- Dam Projects
- Wind Mill Projects
- Canal Concreting
- Pre-Casting Yards
- Heighted Mould Concreting
- Sand, Aggregates, Coal Stacking
- Retention Wall
- Material Stacking
Technical Specifications :
| DESCRIPTION | DIMCP 42/650 | DIMCP 48/650 | DIMCP 56/650 | DIMCP 56/650 |
|---|---|---|---|---|
| Out Put Capacity | 50 m3 | 50 m3 | 50 m3 | 50 m3 |
| Oil Tank Capacity | 80 Liter | 80 Liter | 80 Liter | 80 Liter |
| Diesel Tank Capacity | 30 Liter | 30 Liter | 30 Liter | 30 Liter |
| Inlet Hopper | 0.3 m3 | 0.3 m3 | 0.3 m3 | 0.3 m3 |
| Design Parameter | ||||
| Conveyor Frame: Square Tube Structure | Box Type | Box Type | Box Type | Box Type |
| Travel Speed | 5 km/hr | 5 km/hr | 5 km/hr | 5 km/hr |
| Wheel Bogie Pneumatic Tires (7.50" X 16") | 4 Nos. | 4 Nos. | 4 Nos. | 4 Nos. |
| Belt Width | 650 MM | 650 MM | 650 MM | 650 MM |
| Belt Type | Nylon Rubber | Nylon Rubber | Nylon Rubber | Nylon Rubber |
| Total Weight | 4000 kg | 4100 kg | 4500 kg | 5500 kg |
| Conveyor Boom Length | 42 feet | 48 feet | 56 feet | 66 feet |
Brought-out Make List
| Engine | Kirloskar / Equivalent |
| Hydraulic Pump | Veljan / Equivalent |
| Hydraulic Motor | Bondioli Pavesi (Italy) / Equivalent |
| Oli Cooler | TVS Lucas / Equivalent |
| Hose Pipe | TVS Lucas / Equivalent |
| Paint | Burger / Equivalent |
| Bearing | NTN/TR/Equivalent |

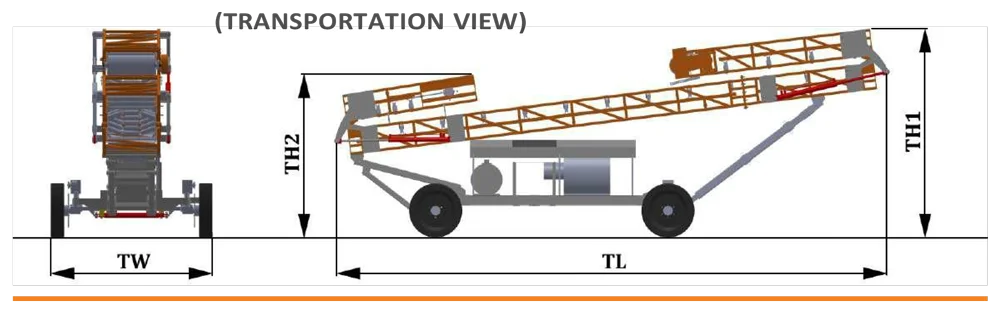

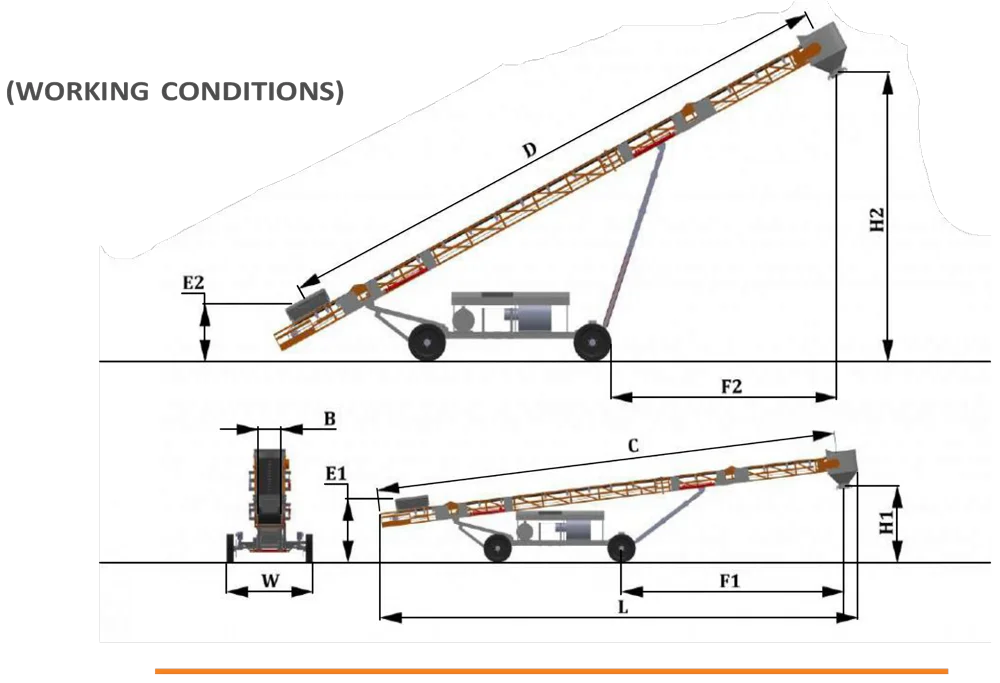

| E1 | E2 | B | C | D | L | H1 | H2 | F1 | F2 | W | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMCP 42/650 | 1600 | 1200 | 650 | 13000 | 12475 | 13460 | 2100 | 6170 | 6285 | 4690 | 2440 |
| DIMCP 48/650 | 1600 | 1200 | 650 | 14600 | 14075 | 15045 | 2330 | 7025 | 7370 | 5550 | 2440 |
| DIMCP 56/650 | 1600 | 1200 | 650 | 17000 | 16475 | 17455 | 2400 | 8240 | 8775 | 6620 | 2440 |
| DIMCP 66/650 | 1600 | 1200 | 650 | 10000 | 19475 | 20420 | 2850 | 9800 | 10240 | 7680 | 2440 |
| TL | TW | TH1 | TH2 | |
|---|---|---|---|---|
| DIMCP 42/650 | 8370 | 2440 | 3120 | 2405 |
| DIMCP 48/650 | 9170 | 2440 | 3240 | 2410 |
| DIMCP 56/650 | 11570 | 2440 | 3370 | 2380 |
| DIMCP 66/650 | 14540 | 2440 | 3810 | 2400 |
