FORWARD & REVERSIBLE PLATE COMPACTOR

Heavy-Duty Forward & Reversible Plate Compactor Designed for Superior Soil Compaction in Confined and Challenging Work Areas.

Our Forward & Reversible Plate Compactor features a dual-directional design, allowing both forward and reverse movement from a single, efficient transmission unit. Engineered for balanced handling and powerful performance, this model is ideal for compacting soil, asphalt, and paving stones.

It is especially effective in the construction of roads, pathways, and landscaping projects, as well as in narrow pipeline and cable trenches where turning space is limited. With its versatility and precision, this compactor is a reliable choice for demanding compaction tasks in confined areas.

We are dedicated to ongoing innovation and refinement of our products to exceed client expectations consistently.​

​At Trinity Solutions, our unwavering commitment to continuous innovation and product refinement is central to our mission of consistently exceeding client expectations. By actively seeking and embracing customer feedback, we gain valuable insights into areas for improvement, allowing us to tailor our products and services to better meet our clients’ needs .​

Application :

Technical Specifications :

Weight
Net Weight150 kg
Operating Weight180 kg
Power Source
EngineDiesel
ManufacturerGreaves/Lombardini
Engine StartRecoil
Engine StopPull Type Cable
Rated Power3.7 kW
Fuel Tank Capacity3.1 Liter
Battery12 V DC, 44 AH
Fuel Efficiency1 liter/hr
Compaction
Operating Speed22 m/min
Gradeability30%
Drive SystemFully Hydraulic
Frequency80 Hz/3200 RPM
Amplitude1.4 mm
Centrifugal Force28 KN
Vibration & Sound
H/A Vibration1.5 m/s2
Sound Power Level Guaranteed (2000/14/EC)108 dB
Sound Pressure at Operators Ear (ISO 11201)92 dB
Operation
Forward & Reverse MotionCable Type Lever
Wall Side CompactionMinimum Clearance
Operating HandleFoldable with Locking Arrangement
Transportation
LiftingSingle Centre Lifting Provision

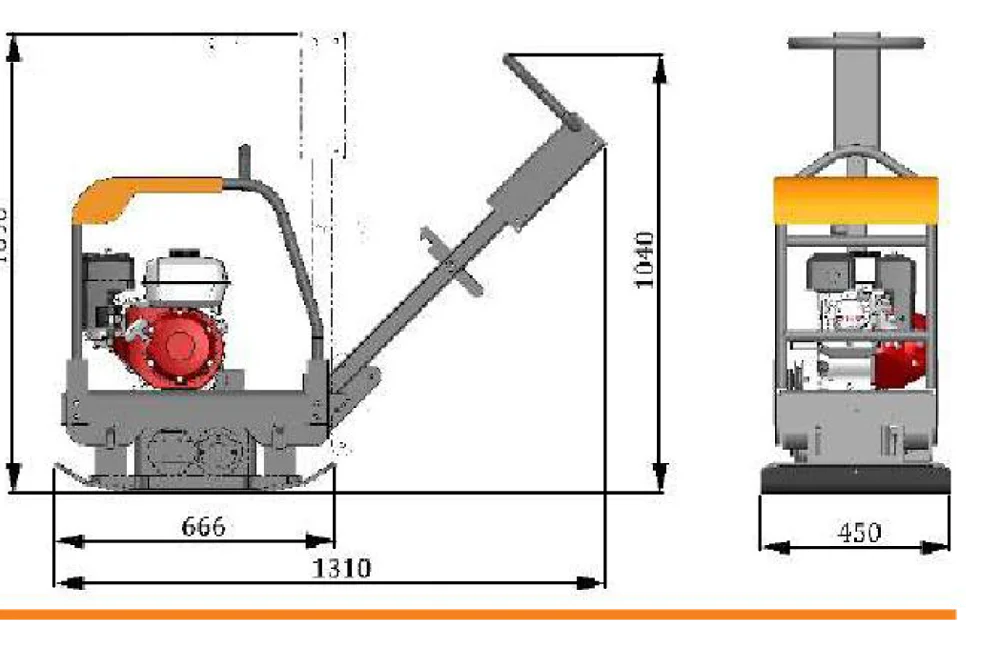

Dimensions
Plate Width450 mm
Plate Length666 mm
Total Length1310 mm
Total Width450 mm
Total Height1090 mm
